1994 MR2

Custom Stainless Exhaust System

One of the first performance modifications I decided on for my MR2 Turbo was to install a high-performance exhaust system. I had several desired attributes for my exhaust system that I have listed here in order of priority:

Of all of the systems available for the MR2 Turbo, the one that I liked the best was the GReddy/Trust Power Extreme. However, in addition to availability problems, I identified several things that I did not like about the Power Extreme:

I was willing to try the Power Extreme anyway, but they were not currently obtainable. I finally decided to make my own exhaust system. I am now very glad that I was not able to get the PE system because my custom exhaust system has turned out to be much nicer and it meets all of my design goals. In addition, I ended up with these additional benefits:

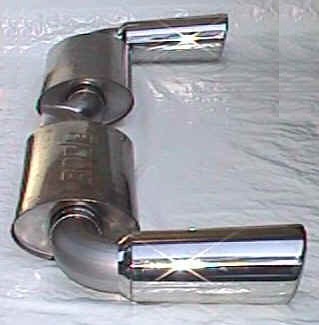

Due to the removable tip design, I can change the tips if I get tired of the current ones. I designed the system this way because I thought the large tips may be too radical. I had originally intended to make two sets of tips, but I actually am very happy with the first set and I doubt that I will ever want to change them.

Borla XR1 3-inch stainless muffler

Stainless 3-inch diameter, 3-inch radius mandrel bends

Rolled-edge, angle-cut, stainless steel tip

RMS B-pipe

Here is a list of the materials that I had to collect to build this exhaust system

Finding and procuring all of these parts was a pretty big job in itself. Using the RMS B-pipe was a tremendous time-saver. Thanks Jeff!

Shortening the muffler inlets and outlets

I had limited experience TIG welding stainless steel, so I began by making a few preliminary cuts on the L-bends and then chopping up and welding some of the scraps until I was happy with the results.

First cut on splitter half

Second cut on splitter half

Tack-welded splitter

Finish-welded splitter

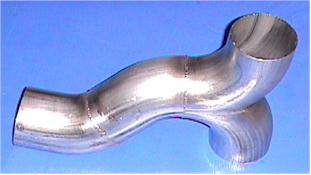

One of the more tricky parts to fabricate was the splitter that diverts the exhaust flow from the B-pipe to the two mufflers. I tried hard to make this part symmetrical with a straight inlet to equalize flow through the two mufflers, and therefore minimize back pressure. Due to space constraints the splitter had to be less than four inches in overall width. I decided to grind and smooth the weld on the splitter, so it looks like it was molded from a single piece of stainless steel.

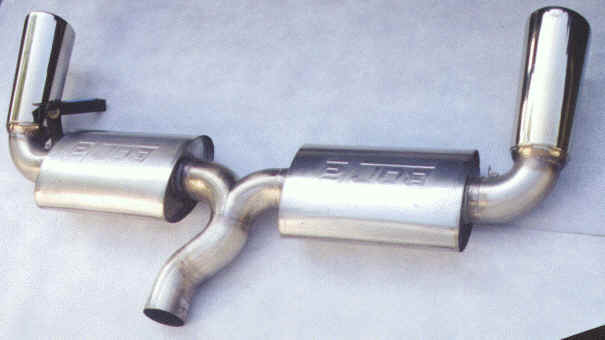

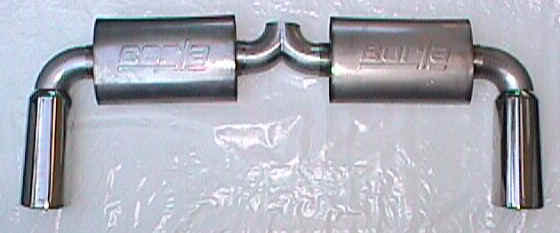

In order to enable installing the long, gradually-tapering tips, the mufflers had to be installed parallel to each other and toward the front of the exhaust system compartment, so that the outlets would be as far forward as possible. This has the added benefit of making room for a trunk-mount intercooler duct.

The car sounds much more throaty and deeper with the exhaust system. It is significantly louder than stock, of course, even at idle. But it is not as loud as a straight pipe and it is totally tolerable. In fact, to me it sounds much better than stock, which in my opinion is too quiet for a serious sports car! The reduced back pressure enables the turbo to make one more pound of boost (10 PSI as opposed to the 9 PSI it got stock). Between the extra boost and the reduced restriction, it should be making a little more power, but I don't know how much.

Cost breakdown: Several people have asked about the cost of this system. Don't plan on saving money with a system like this one! There are not many systems on the market that cost as much as this one did, and that doesn't even include labor!

Sound recordings
