V6 MR2

Engine Installation

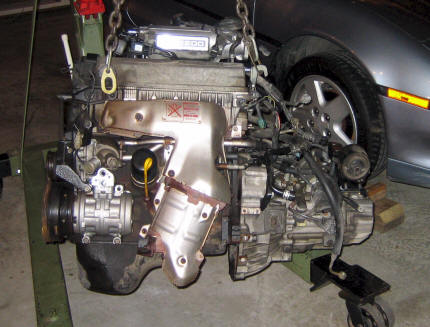

Out with the old . . .

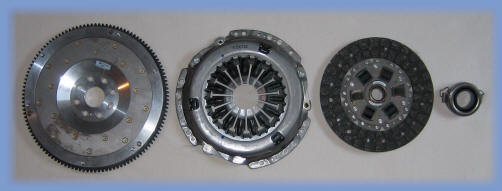

Flywheel and clutch parts

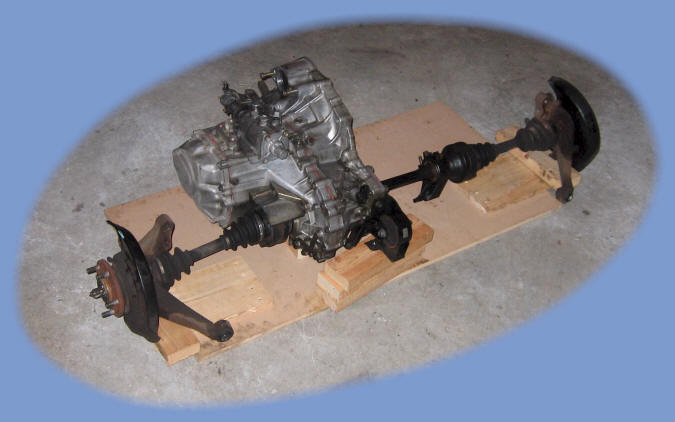

MR2 Turbo LSD drivetrain – from parts car

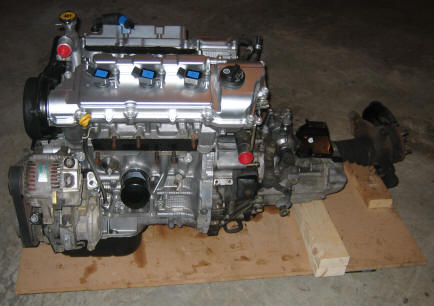

Engine and transaxle assembled

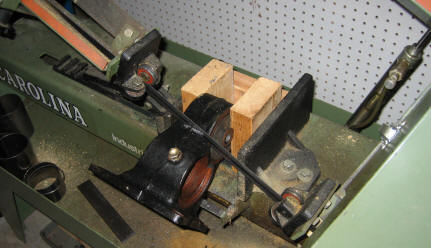

Modifying Solara rear axle bearing carrier

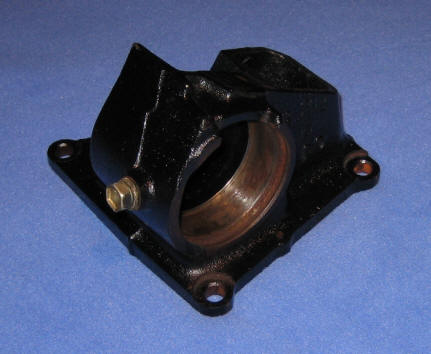

Modified carrier

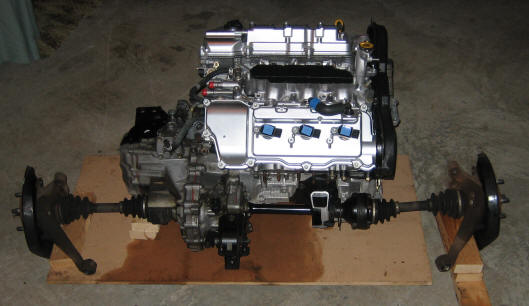

Fitting and measuring carrier / bearing position

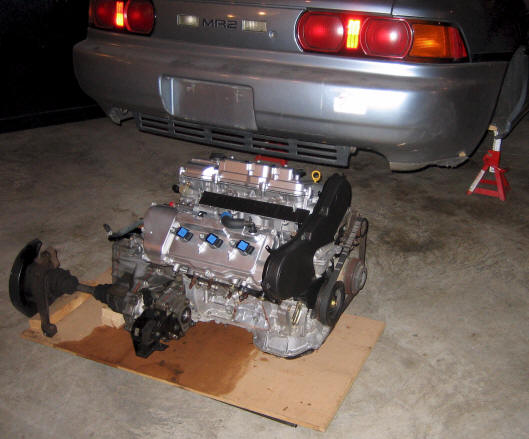

By rolling the engine under the car on one-inch tubes, only 26 inches clearance was needed.

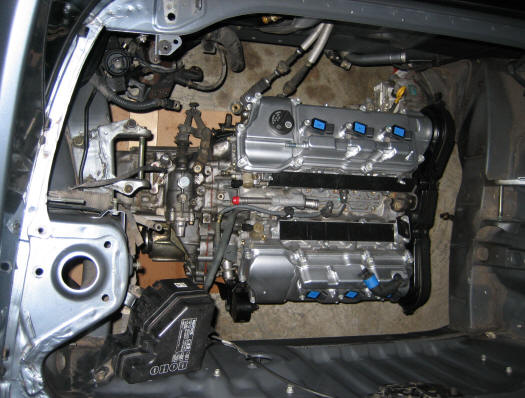

Engine sitting under the car after lowering the car back down to a workable height

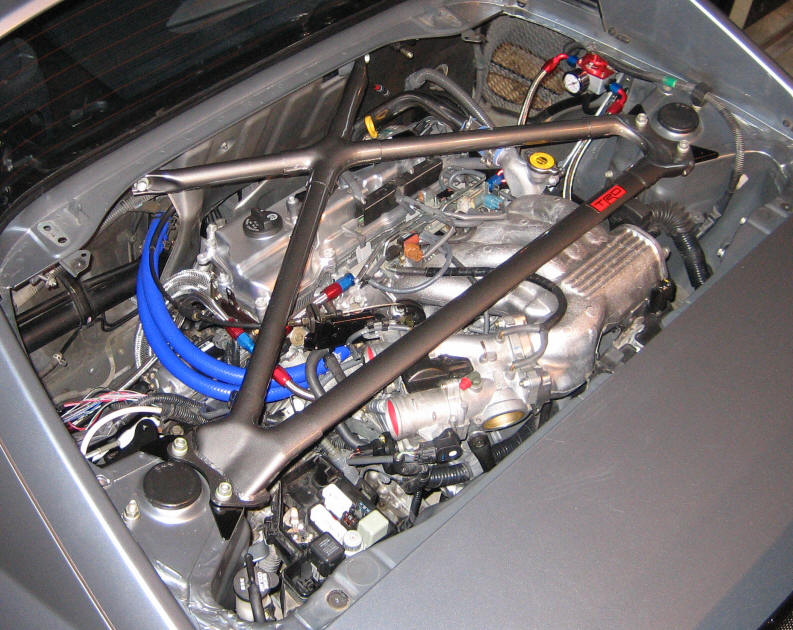

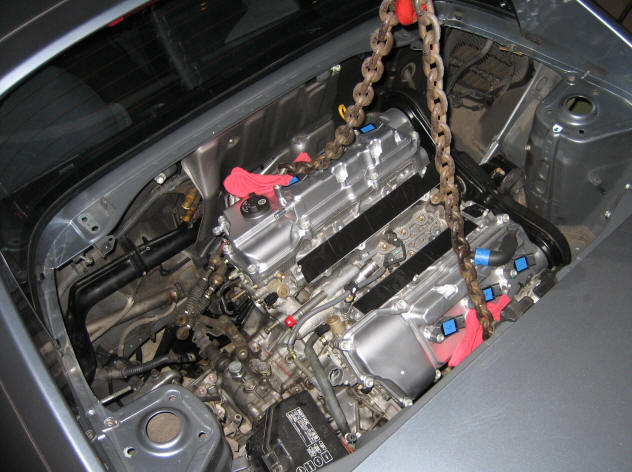

Engine in car, supported by front and rear engine mounts and a jack under the oil pan

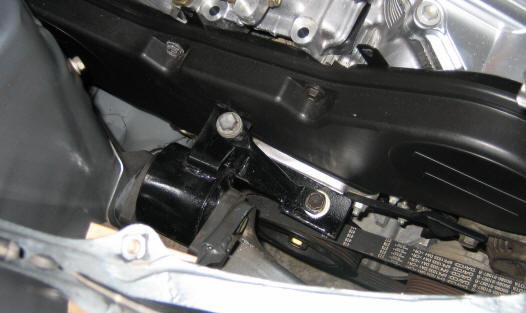

Completed right side engine mount

Modified center axle
Spacer and snap ring groove machined by Robinson Racing

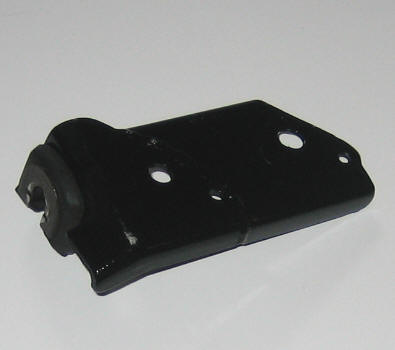

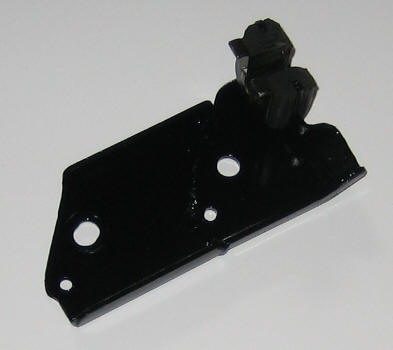

Modified throttle cable bracket

Throttle cable

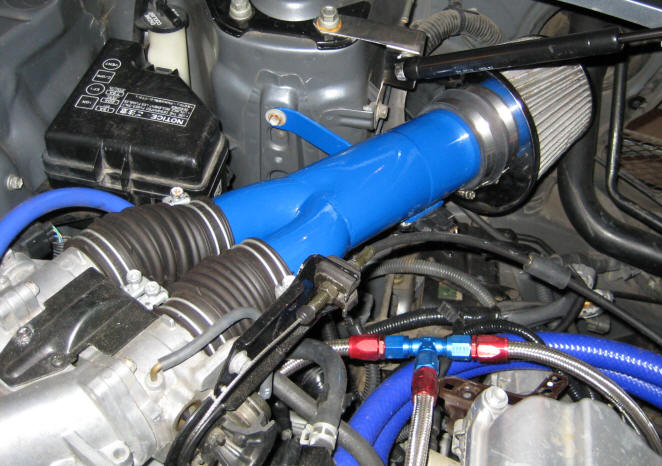

Intake

Electrical
Fuel system
Plumbing
