Drivetrain

• McLeod billet steel flywheel, 25 pounds
• McLeod clutch pressure plate and disc
• McLeod clutch disc with sprung hub
• McLeod Pantera release bearing and collar
• Wilwood master cylinder
• Lucas external slave cylinder
• Quaife E62G1121 aluminum bellhousing with custom dowel pins
• Bronze pilot bushing
• RBT-5 DS-25/2 ZF 5-speed transaxle
• Gear Ratios 2.23, 1.47, 1.04, 0.846, 0.642
• Final Drive 3.78:1
• Driveshaft Shop axles
• Limited slip differential
• CNC Performance Parts shifter, center shift
• CNC Performance Parts ZF shift cable adapter
• Control Cables shift cables
• ARP flywheel bolts
• ARP clutch pressure plate bolts
• ARP bellhousing bolts
• Gloss black powder coated rear engine plate
• Shift points and speeds in gears

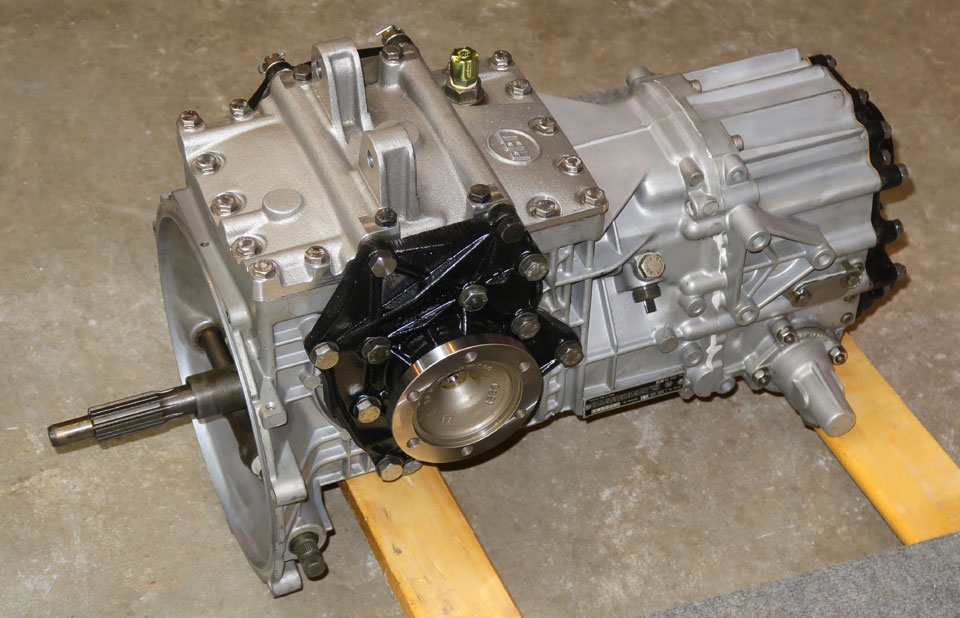

RBT Gearbox

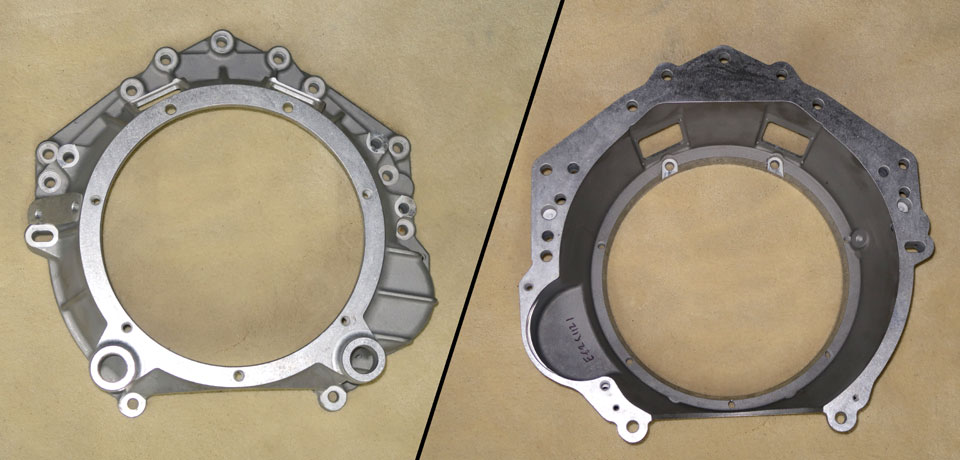

Quaife bellhousing

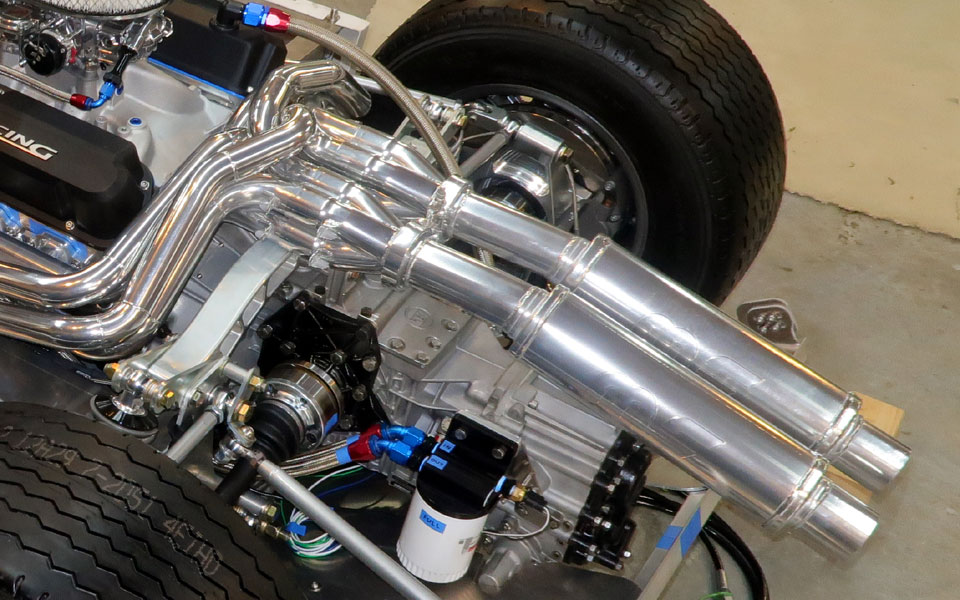

Drivetrain

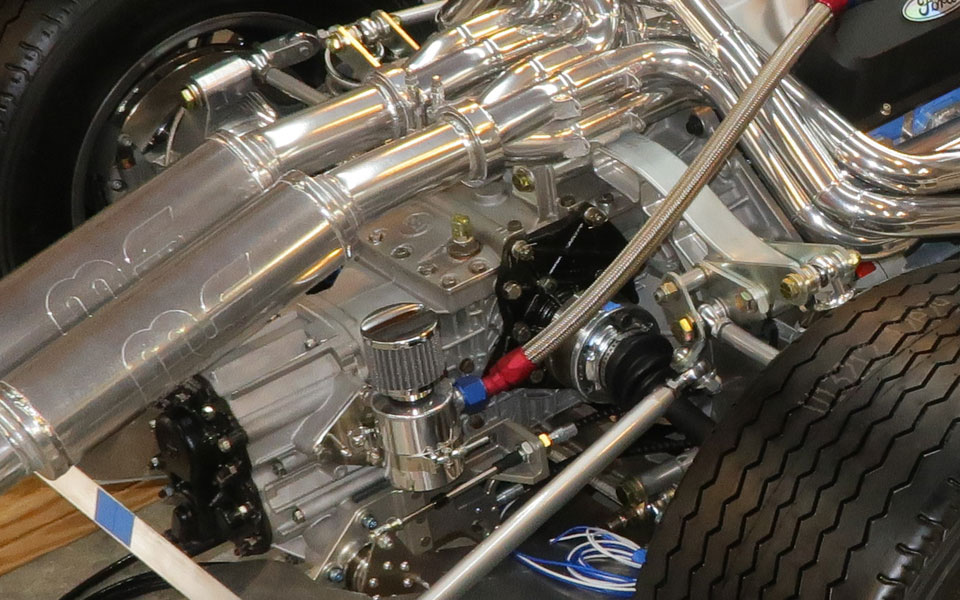

Drivetrain

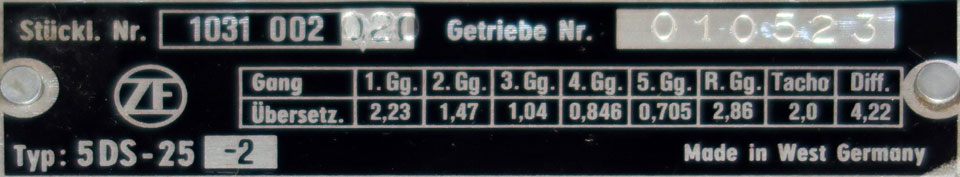

Gear ratios

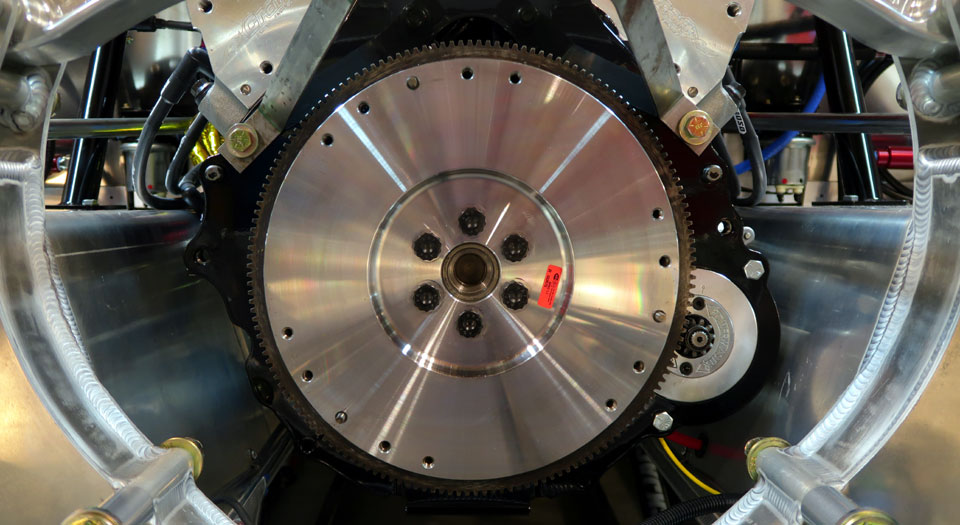

Flywheel
